Innovative robot welding system for a wide variety of parts
- Toimialat
- Ajoneuvoteollisuus
- Metalliteollisuus
- Sovellukset
- Arc Welding
- Asiakasohjelma
- Scheppach Fabrikation von Holzbearbeitungsmaschinen GmbH
Challenge
- Wide production range: from workpieces the size of an A4 sheet of paper and weighing just a few kg to components with a length of 2 m and a mass of 150 kg
- Material thicknesses from 1.0 to 15 mm
- Highest requirements on product quality due to the position of many visible weld seams
Solution
- Fully-automatic robotic welding system with the highest quality and flexibility standards

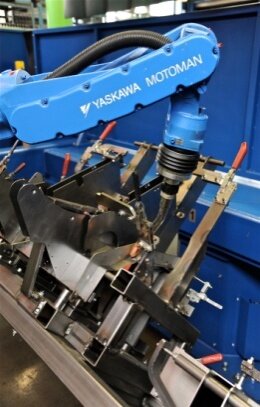

- Maximum precision and reliability achieved using the MOTOMAN MA1900 welding robot

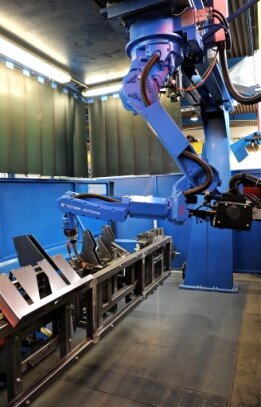

- Optimal welding position thanks to inverted installation and gantry system with a length of three meters
- Highest seam quality and maximum availability thanks to superior wire feed system and integrated cable routing

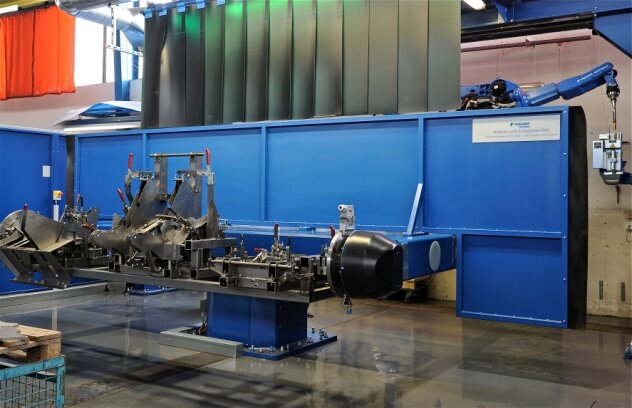

- 2-station positioner from the RWV2 series enables division of the system into a welding area and a loading area with an infinitely rotating rotational axis on each side of the table
Results
- Basis for cost-effective and competitive production
- Maximum flexibility allows coverage of the entire Scheppach production range
- Perfect welding results
- User-friendly operation thanks to easy programming and utmost reliability
